Installing exhaust turbocharger

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage of the electric wastegate valve controller .
Excessive force when removing and installing a jammed exhaust turbocharger may damage the electric wastegate valve controller .

Do not pull on the electrical wastegate valve controller or on the coupling rod.
Apply force only at the turbine housing and exhaust manifold.
Do not pull on the compressor housing.

NOTE: RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .

Do not use any metal-cutting tools.

NOTE: RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Replace gasket.
Parts: Seal

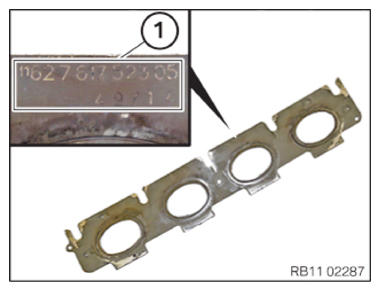

Mount the seal so that the part number (1) remains legible.

Courtesy of BMW OF NORTH AMERICA, INC.

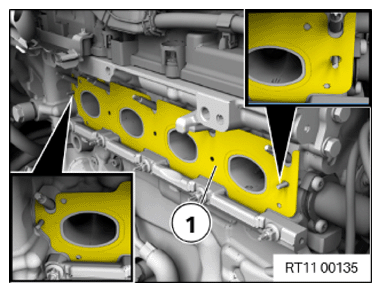

Insert the seal (1) at the cylinder head and install.
Make sure the installation orientation of the seal (1) is correct.

Courtesy of BMW OF NORTH AMERICA, INC.

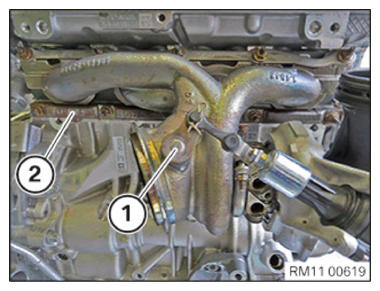

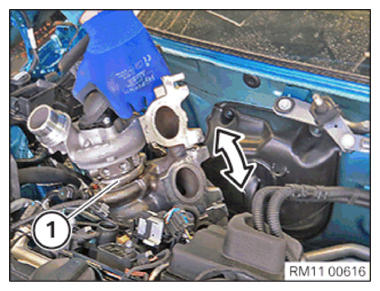

Insert and position the exhaust turbocharger (1) from the top.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in the exhaust turbocharger (1) down into the trim strip (2) and bring into contact with the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Note the installation position of the component. The component can be installed in various installation positions.

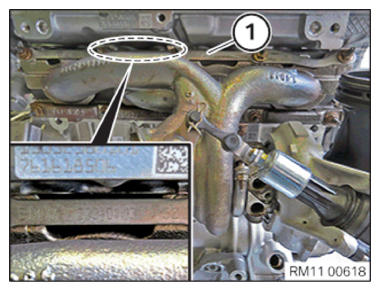

Check the shifting strip (1) for the correct installation position.
The original BMW part number must be readable from the rear.
Feed in and install the shifting strip (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace all nuts.
Parts: Nuts

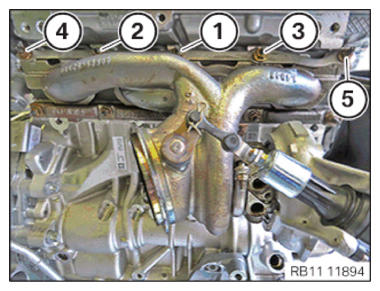

Tighten the nuts in the sequence (1) to (5).

Tightening torques

Exhaust turbocharger to cylinder head
M7 Observe tightening sequence! Replace nuts.	1. Joining torque	10 Nm
	2. tightening torque	10 Nm
	3. Joining torque	16 Nm
	4. tightening torque	16 Nm
	5. Tightening torque	16 Nm

Fig 1: Exhaust turbocharger Nuts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

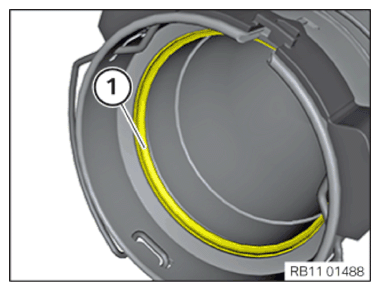

Check sealing ring (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

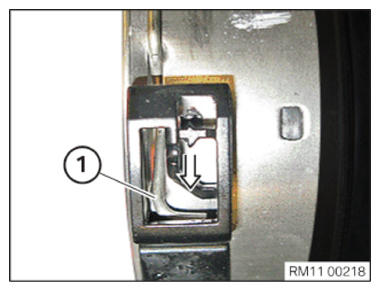

Detach locks (1) from the holders In the arrow direction.
Ensure that locks (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

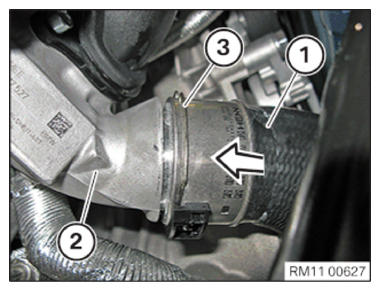

Guide in and install the pressure pipe (1) on the exhaust turbocharger (2) in the arrow direction.
Ensure that locks (3) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

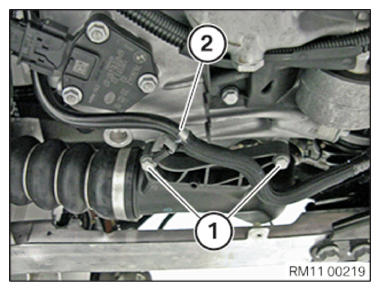

Insert and install the line (2) .
Tighten down screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the coolant return line (3) .
Insert the coolant feed line (2) and install.

Tighten down screw (1) .

Tightening torques

Coolant line to exhaust turbocharger
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

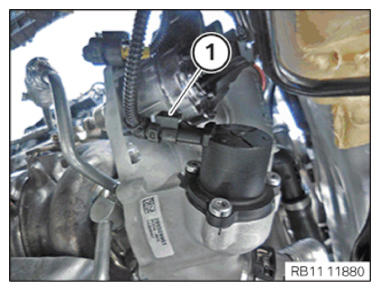

Connect and lock the connector (1) .
Make sure the connector (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

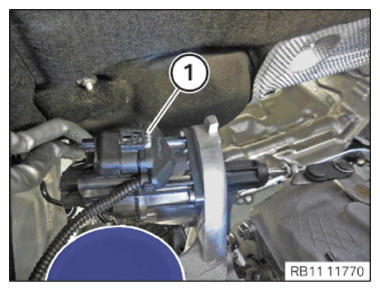

Connect and lock the connector (1) .
Make sure the connector (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Perform initial filling with the additive when replacing the exhaust turbocharger
NOTE:
RISK OF DAMAGE
Dry running due to insufficient initial filling of the exhaust turbocharger .
Damage to the exhaust turbocharger .
- Be sure to do the initial filling when replacing the exhaust turbocharger.
- Fill the exhaust turbocharger with the matching additive (see applicable BMW parts catalogue).
Courtesy of BMW OF NORTH AMERICA, INC.

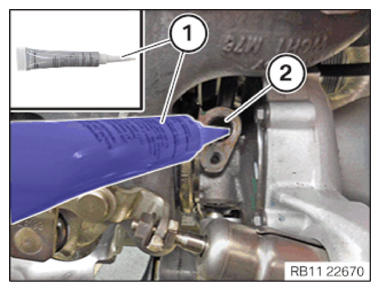

Fill additive (1) in the bore (2) of the oil feed line.

Consumable

Exhaust turbocharger additive, gasoline MSP

17 ml, Tube

83192457276

NOTE: TECHNICAL INFORMATION
Observe the sign in the engine compartment! Only fill with approved engine oil of the correct (Society of Automotive Engineers) vil grade.

Fill the exhaust turbocharger with engine oil to the edge by connecting the oil supply line (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Engine oil

Technically suitable engine oils for BMW Group engines

Insert and install the oil supply line (2) .
Tighten down screw (1) .

Tightening torques

Oil feed line to exhaust turbocharger/crankcase
M6x12	Tightening torque	8 Nm

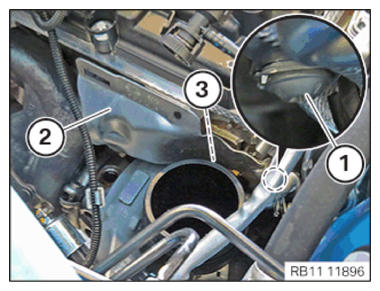

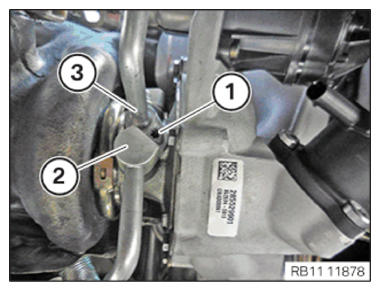

Insert and install the heat shield (2) on the holder (3) .

Tighten down screw (1) .

Tightening torques

Heat shield to cylinder head
M6x16	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

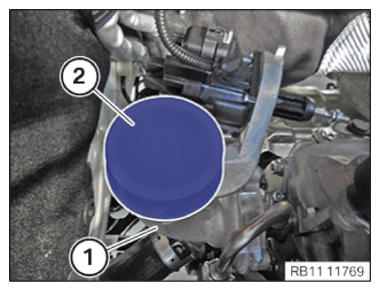

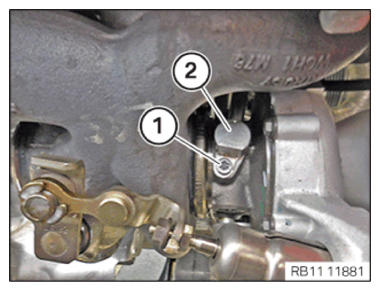

Thread out the standard tools (2) on the exhaust turbocharger (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
