Install the heat shield on the exhaust turbocharger, top
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

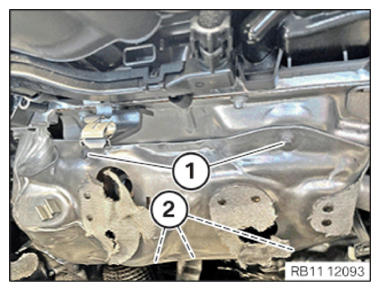

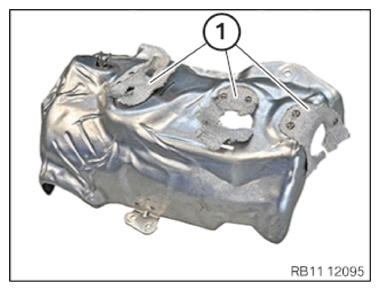

- Check the heat shield for damage that may occur to the flexible components (1)
.
If flexible components (1) are damaged, the entire heat shield must be replaced.

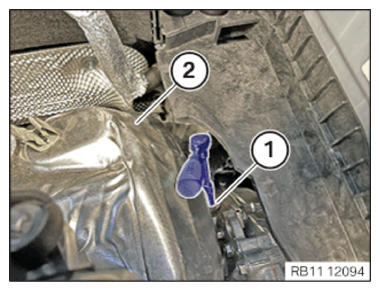

- Position the heat shield (2) .
- Tighten down screw (1)
.Tightening torques
Heat protection plate M6x16 Tightening torque 8 Nm M8 Tightening torque 19 Nm - Tighten the screws (1)
.Tightening torques
Heat protection plate M6x16 Tightening torque 8 Nm M8 Tightening torque 19 Nm - Tighten the screws (2)
.Tightening torques

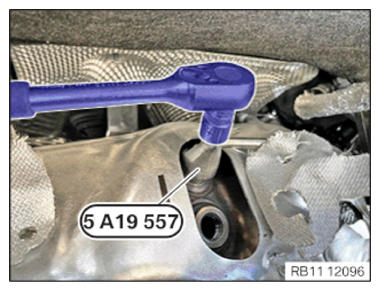

Heat protection plate M6x16 Tightening torque 8 Nm M8 Tightening torque 19 Nm - Tighten union nut (1)
of the pressure line using special tool 5 A19 557
.Tightening torques

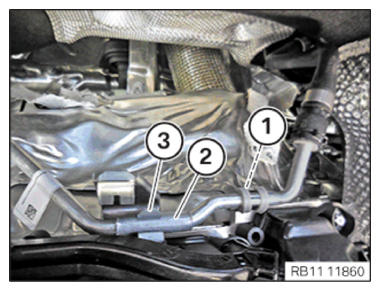

Union nut of pressure line M14 Tightening torque 20 Nm - Clip coolant line (2) into holder (3) .
- Tighten down screw (1)
.Tightening torques
Coolant line to cylinder head M6 Tightening torque 8 Nm
