Install the filler tube on the active tank

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

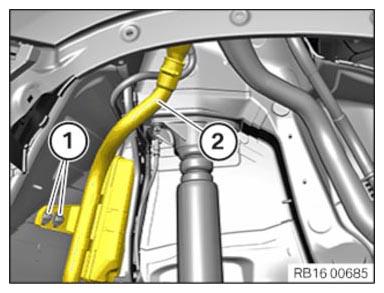

Position the fuel filler pipe (2).
Replace the plastic nuts (1).
Parts: Plastic nuts

Insert plastic nuts (1) and tighten.

TIGHTENING TORQUE SPECIFICATIONS

SCR filler pipe on wheel arch
Plastic nut Replace plastic nut.	Tightening torque	4 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

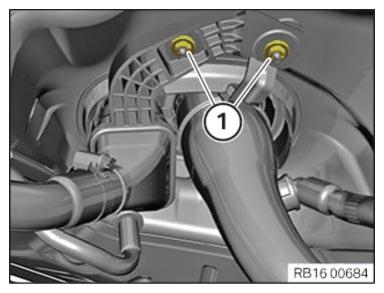

Replace nuts (1).
Parts: Nuts

Install the nuts (1) and tighten.

TIGHTENING TORQUE SPECIFICATIONS

SCR filler tube to body
Nut M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

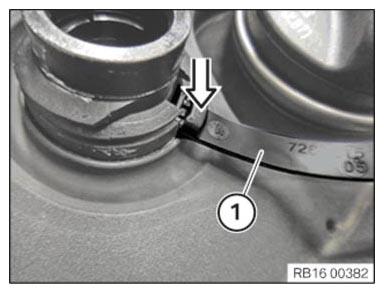

Mount the filling hose in the arrow direction.
Replace the hose clamp (1).
Parts: Hose clamp

Position hose clamp (1) and tighten.

TIGHTENING TORQUE SPECIFICATIONS

Filling hose SCR reservoir
Hose clamp Replace hose clamp.	tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

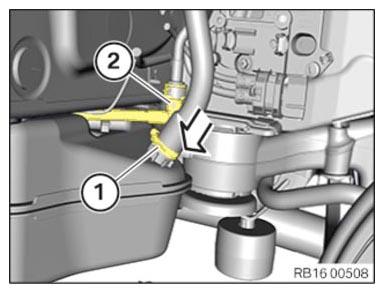

Position snap fastener (2) and lock.
Lock the retaining strap (1) in place in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

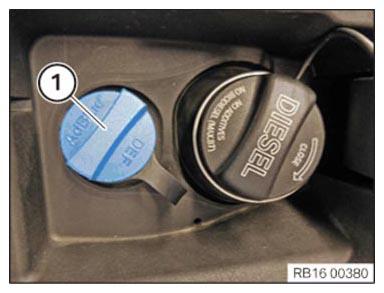

Close sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
