Install the door lock
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

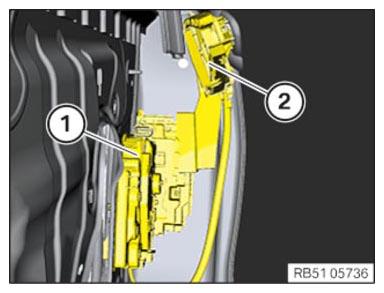

- Guide the door lock (1)
together with the outside door handle support (2)
into the door.
Make sure the seal of the door lock is not damaged during installation.
- Feed support (2) into the mounting toward the rear.
- Tighten screw (1)
.TIGHTENING TORQUE SPECIFICATIONS

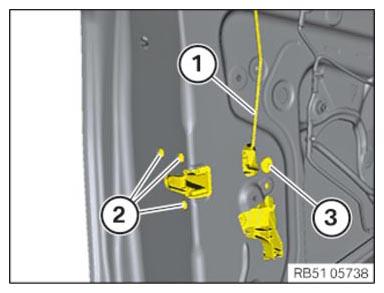

Outside door handle support to door screw Tightening torque 2.6 Nm - Screw in screws (2) and (3) a few turns.
- Initially tighten the bolts (2)
.TIGHTENING TORQUE SPECIFICATIONS
Door lock to door screw Tightening torque 8.8 Nm - Then tighten the screw (3)
.TIGHTENING TORQUE SPECIFICATIONS

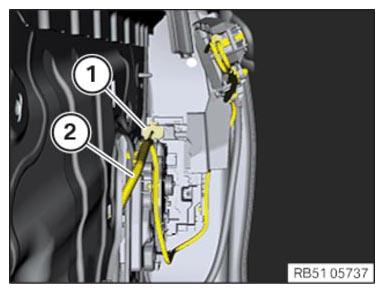

Door lock to door screw Tightening torque 8.8 Nm - Clip in locking rod (1) .
- Connect and lock the connector (1) on the door lock.
- Fasten the wiring harness (2)
to the door lock and the outside door handle support.
