Install the C-pillar trim panel at the bottom right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the bottom C-pillar trim panel

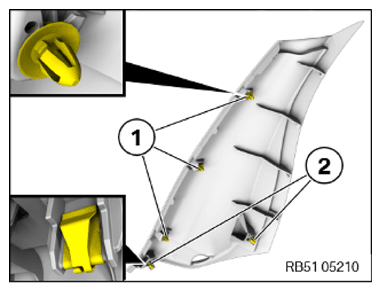

- Check clips (1) for damage, and replace if necessary.
- Check the clamps (2)
for damage, and replace if necessary.

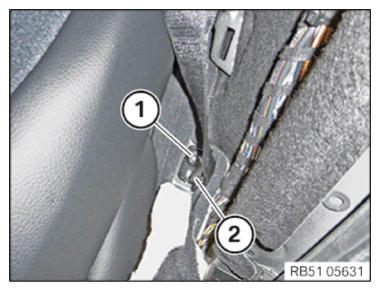

- Insert the end fitting (2) through the C-pillar trim panel.
- Mount the end fitting (2)
and tighten the screw (1)
.Tightening torques
End lining to body Screw Replace screw. tightening torque 42 Nm - Install the carpet correctly.

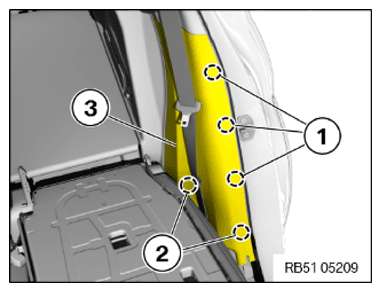

- Clip in the C-pillar trim panel on the bottom (3)
with the clamps (2)
and the clips (1)
.

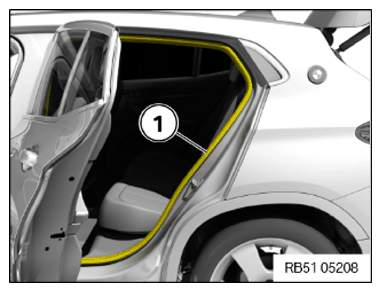

- Position the edge protection (1)
correctly in the area of the bottom C-pillar trim.
