Install cross connection
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Installed on the right side only on vehicles with production date as oft 12/2016
- Secure spray guard (1)
to cross connection (2)
as shown.
- Install cross connection.
- Position all screws.
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATIONS
Bracing strut to top cross connection M8 Tightening torque 25 Nm - Tighten the screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Air duct to deformation element/cross connection M6x20 screw Tightening torque 6 Nm NOTE: RISK OF DAMAGE
Incorrect routing of the Bowden cable for the hood lock .
Chafing of the coolant ventilation line, coolant loss and engine overheating .- Route the Bowden cable of the hood lock correctly under the lock bridge.
- Hook Bowden cable in all clips.
- Make sure that the Bowden cable has no contact with the coolant ventilatin line.

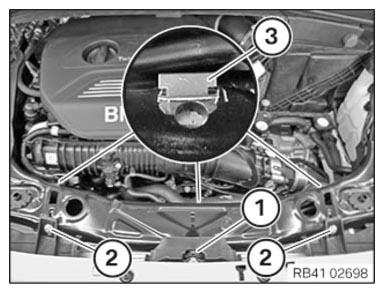

- Fasten clamps (3) for hood lock Bowden cable to cross connection.
- Tighten screws (2)
of cross connection (3)
.TIGHTENING TORQUE SPECIFICATIONS
Cross connection on support for cross connection M6x20 Tightening torque 12 Nm - Fasten expanding rivet (1) .
- Tighten the screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Cross connection on support for cross connection M6x20 Tightening torque 12 Nm - Fasten expanding rivet (1) .
- Installed on the right side only on vehicles with production date as oft 12/2016
- Mount spray guard (1) correctly to prevent corrosion.
- Secure spray guard (1)
to the lock bridge with retaining tabs (2)
.
