For equipment specification with air duct for rear passenger compartment: Install air duct
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Insert the air duct (1)
.

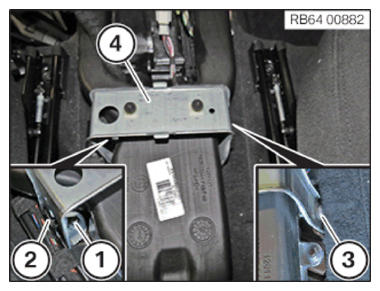

- Position the holder (4)
correctly and tighten the screw (3)
.Tightening torques
Center console bracket to bodyshell Nut tightening torque 8 Nm Screw tightening torque 8 Nm - Tighten the nut (1)
and attach the cable clip (2)
.Tightening torques

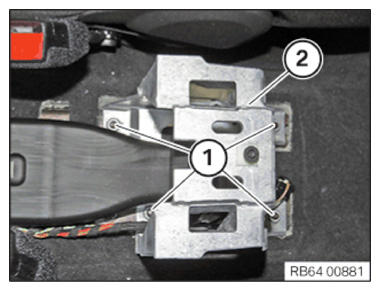

Center console bracket to bodyshell Nut tightening torque 8 Nm Screw tightening torque 8 Nm - Position the holder (2)
correctly and tighten the nuts (1)
.Tightening torques
Center console bracket to bodyshell Nut tightening torque 8 Nm Screw tightening torque 8 Nm
