Close the locking ring
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on fuel system
.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

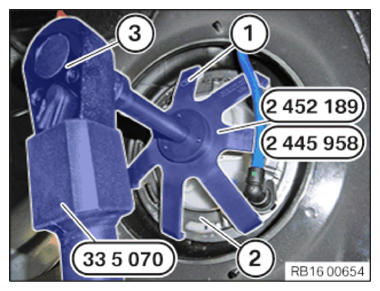

- Set special tool 2 452 189 or 2 445 958 (1) on locking ring (2).
- Connect special tool 0 495 554 (33 5 070) to a 1/2-inch reversible ratchet head (3) and set it on special tool 2 452 189 2 445 958 .
- Tighten locking ring (2) in clockwise direction.
- Make sure that the locking ring to the fuel tank is engaged correctly.

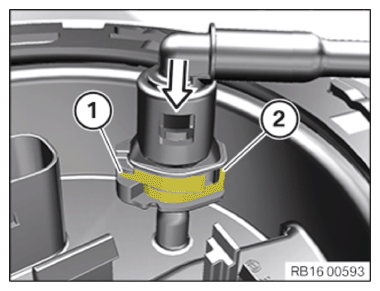

- Check locks (1) and (2) of the snap fastener for damage and, if necessary, replace them.
Locks (1) and (2) must be locked.
- Connect and lock the snap fastener in the arrow direction.
The snap fastener must lock perceptibly and audibly.

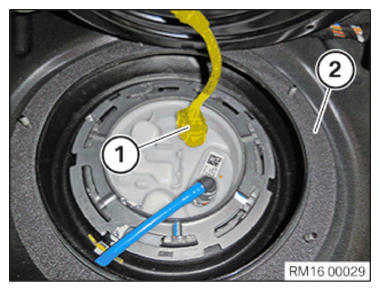

- Connect connectors (1) and lock.
- Replace the seal (1).
Parts: Seal
- Replace the sealing cap of the floor panel.
Parts: Sealing cap
There is a risk of leaks if the sealing cap of the floor panel is reused.

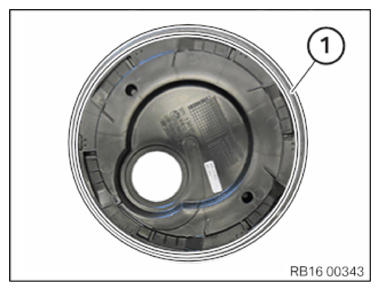

- Coat the seal in the area (1) with lubricant (refer to applicable BMW parts catalogue).
Installation aid Lubricants G14 900 ml, Can 83232360412 - Install the floor panel sealing cap (1).

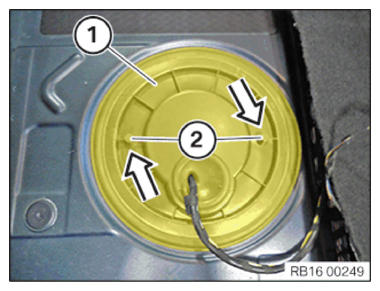

- Lock sealing cap (1) of the floor panel in place on plastic tabs (2) up to the stop in the arrow direction.
