Removing steering wheel/sports steering wheel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
TECHNICAL INFORMATION
The steering wheel and horn plate must be replaced if the airbag unit has been deployed.
Check all steering wheel attachments (such as switches, cover, shift paddles, wiring harness) for damage and replace if necessary!
For additional information see: PROCEDURE AFTER AIRBAG DEPLOYMENT AS RESULT OF AN ACCIDENT .
The steering wheel and horn plate must be replaced if the airbag unit has been deployed.
Check all steering wheel attachments (such as switches, cover, shift paddles, wiring harness) for damage and replace if necessary!
For additional information see: PROCEDURE AFTER AIRBAG DEPLOYMENT AS RESULT OF AN ACCIDENT .
NOTE:
TECHNICAL INFORMATION
Wheel alignment is not necessary after removal, installation or replacement.
Wheel alignment is not necessary after removal, installation or replacement.
Preliminary work
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to REMOVING AIRBAG UNIT OF THE STEERING WHEEL/SPORTS STEERING WHEEL .
NOTE:
TECHNICAL INFORMATION
When releasing the screw, have a support person brace the steering wheel in order to reduce torque on the steering column!
When releasing the screw, have a support person brace the steering wheel in order to reduce torque on the steering column!
- Move the steering wheel/sports steering wheels to the straight-ahead position.
- Unlock plug connection and disconnect .

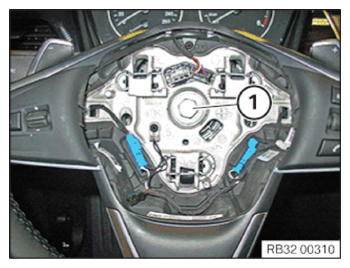

- Release the screw (1) and remove the steering wheel/sports steering wheel.
