Removing steering column shroud lower section
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .

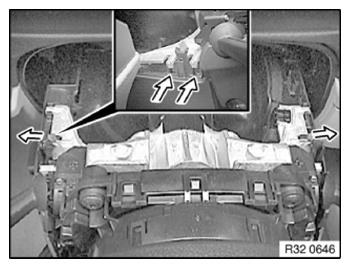

- Press the retaining lugs (arrows) a little outwards and unclip the steering column shroud lower section in a downward direction.
- Tilt steering column shroud lower section in downward direction.

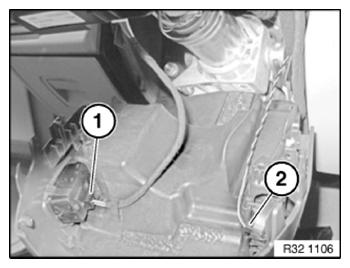

- Unlock and disconnect the plug connections (1) and (2).
- Remove steering column shroud lower section.
