Installing side airbag in front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
- Feed the side airbag (1)
into the upholstery pocket (2)
upwards.

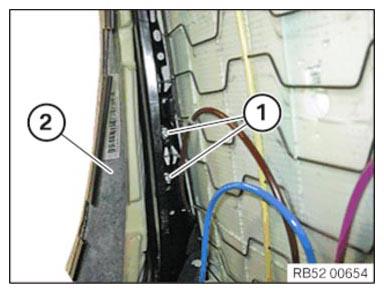

- Fold backrest cover (2) to one side.
- Replace nuts.
Parts: Nuts
- Tighten nuts (1)
.TIGHTENING TORQUE SPECIFICATIONS

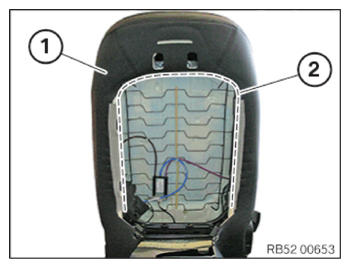

Side airbag to seat frame Hexagon nut Replace nut . 6.5 Nm - Attach seat cover (1)
in area (2)
on backrest frame.

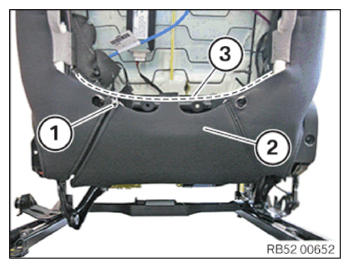

- Attach seat cover (2) in area (3) on backrest frame.
- Only in F44 and F39
- Close the zipper (1)
.NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment. - Feed connector (1) into connector housing (2),
- Make sure the connector (1) engages correctly in the connector housing (2),
- Secure cable with cable tie (3)
on connector housing (2)
.
Follow-up work
- Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
