Install front safety belt

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.

US version only:
Correctly position the seat belt retractor (3) .
Make sure the guide (4) is positioned correctly.
Replace the screw (2) .
Parts: Screw

Tighten down screw (2) .

TIGHTENING TORQUE SPECIFICATIONS

Front seat belt retractor to body
Screw Replace screw.	Tightening torque	42 Nm

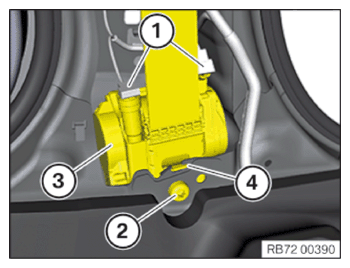

G15173609

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) .
Correctly position the seat belt retractor (3) .
Replace the screw (2) .
Parts: Screw

Tighten down screw (2) .

TIGHTENING TORQUE SPECIFICATIONS

Front seat belt retractor to body
Screw Replace screw.	Tightening torque	42 Nm

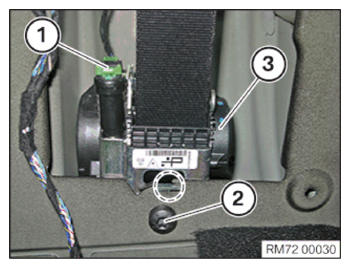

G15173611

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) .
Install the seat belt guide loop including the seat belt strap.

Tighten down screw (2) .

TIGHTENING TORQUE SPECIFICATIONS

Seat belt guide loop on B-pillar
M10 screw	Tightening torque	42 Nm

G11650416

Courtesy of BMW OF NORTH AMERICA, INC.

Mount slide bar,
Tighten the screws (1) .

Follow-up work

Refer to INSTALLING THE FRONT STRAP FITTING .
Refer to INSTALLING THE LOWER B-PILLAR TRIM PANEL .
Refer to PARTIALLY INSTALLING UPPER B-PILLAR TRIM PANEL .
Refer to INSTALLING THE REAR DOOR SILL COVER STRIP .
Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
Refer to CONNECTING THE BATTERY EARTH LEAD .
