Removing and installing (replacing) the headlight driver module (2016-2022)

Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.

Necessary preliminary tasks:

• Remove HEADLIGHT .

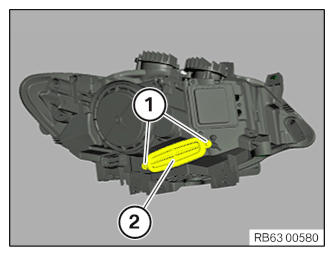

Release screws (1).

Pull headlight driver module (2) out of the headlight.

Unlock and disconnect associated connector.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

During installation, make sure gasket (1) is correctly positioned.

Gasket (1) must not be damaged and must be installed free from grease.

Latch mechanisms (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in headlight driver module (1) via vehicle diagnosis.

• Service functions
• Body
• Lights
• Initialize the headlight driver module and teach in LEDs in headlight
• Code the FEM (if FEM is installed in the vehicle)
