Installing the engine wiring harness for sensor system 2

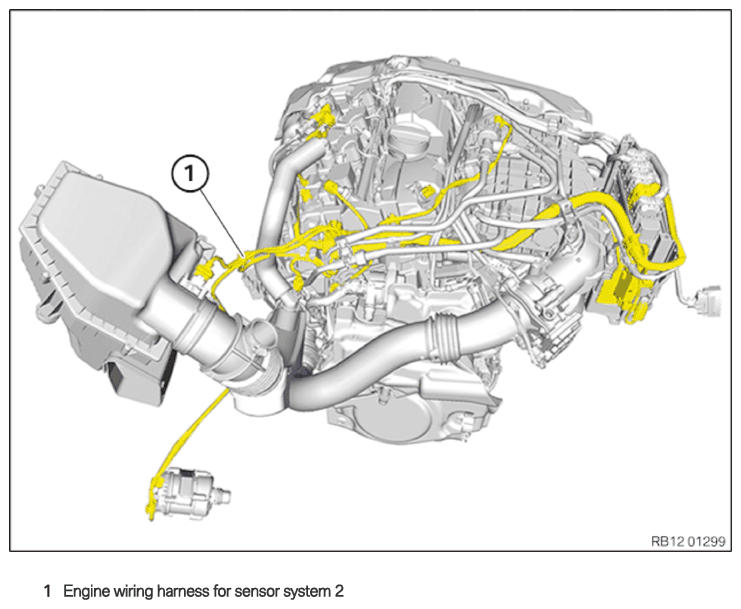

Engine wiring harness for sensor system 2
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

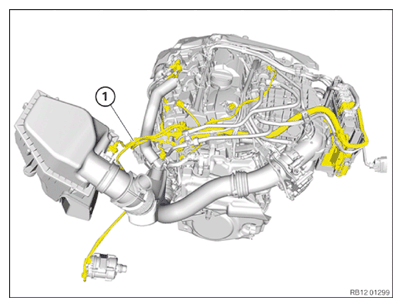

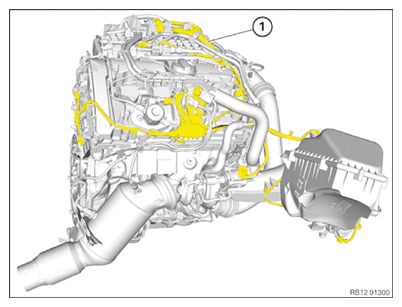

- Guide in and install the engine wiring harness for sensor system 2 (1) .
- Secure all clamps.
- Connect and lock the connector of the temperature sensor at the cylinder head.
- Connect and lock the connector of the hot film air mass meter.
- Connect the connector of the intake camshaft sensor and lock.
- Connect the connector of the exhaust camshaft sensor and lock.
- Connect and lock the connector of the rail pressure sensor.
- Connect and lock the connector of the high pressure pump.
- Connect and lock the connector of the crankcase ventilation system heating element.
- Connect and lock the connector of the electric coolant pump.
The connectors must engage audibly.
- Connect and lock the connector of the Lambda oxygen sensor.
- Connect the connector of the monitoring oxygen sensor and lock.
- Connect and lock the connector for the turbocharger.
- Connect and lock the connector from both solenoid valves of the camshaft adjustment.
- Connect and lock the connector for the tank vent valve.
The connectors must engage audibly.

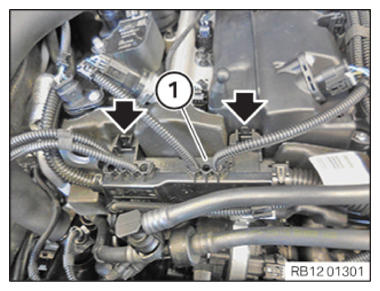

- Thread in cable duct (1)
and install.
The locks (arrows) must engage audibly.

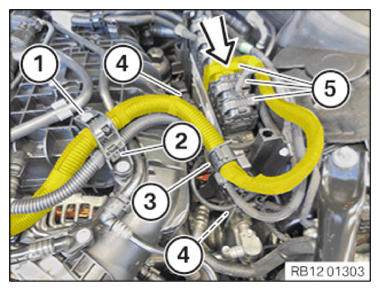

- Connect and lock all connectors (5) in the direction of the arrow.
- Connect and lock the connector (4)
.
The connectors (4) and (5) must audibly engage.
- Connect and lock the holder (3)
.
The holder (3) must engage audibly.
- Lock the lock (2) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Holder on intake plenum | ||
|---|---|---|
| TS5x25 | Tightening torque | 5 Nm |
- Slide the cover (1) in the direction of the arrow into the guide (2) and install it.
- Lock clamp (3)
.
The clamp (3) must engage audibly.
Follow-up work
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to FASTENING HIGH-VOLTAGE CABLES ON THE ELECTRICAL MACHINE ELECTRONICS .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE CYLINDER HEAD COVER ACOUSTIC COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
