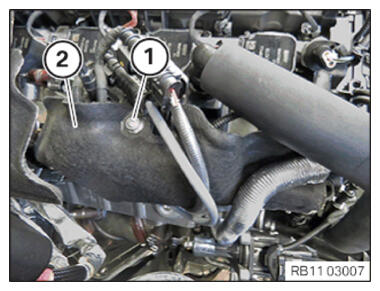

Install the cylinder head cover acoustic cover
- Insert the acoustic cover (2)
and fasten it with the bolt (1)
.
TIGHTENING TORQUE SPECIFICATIONS
| Acoustic cover (side) to cylinder head cover |
| TS6 x 20 |
Tightening torque |
6 Nm |
