Install fan cowl

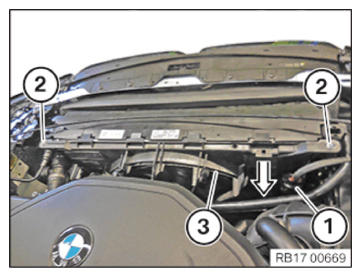

- Feed in and install the fan cowl (3) in the direction of the arrow.
- Tighten the screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Fan cowl on radiator | ||
|---|---|---|
| TS6x20 | Tightening torque | 6 Nm |

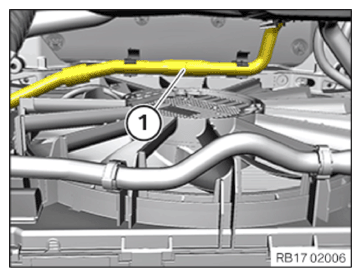

- Connect and lock the connector (1)
.
The connector (1) must engage audibly.
- If fitted:

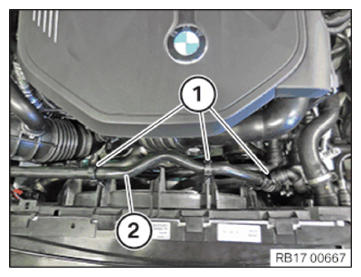

Fasten the coolant line (1) below at the fan cowl with the clamps.
- Feed in and install coolant line (2) .
- Lock clamps (1)
.
The clamps (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING FRONT CROSS CONNECTION (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING BOTH FRONT-END STRUTS .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
