Install the rear top cross connection
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

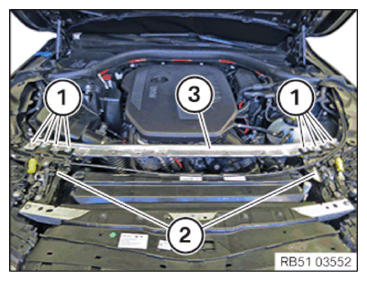

- Slightly lift the support (2) of the hood lock on the right and insert the cross connection at the rear top (3) to the front.
- Slightly lift the support (2) of the hood lock on the left and insert the cross connection at the rear top (3) to the front.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Rear top cross connection to wheel arch carrier support | ||
| Torx screw M8x30 | Tightening torque | 19 Nm |
| Torx screw M10x40 | Tightening torque | 19 Nm |
Follow-up work
