16 12 060 Removing and installing/replacing carbon canister (US version NVLD)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear right WHEEL ARCH PANEL

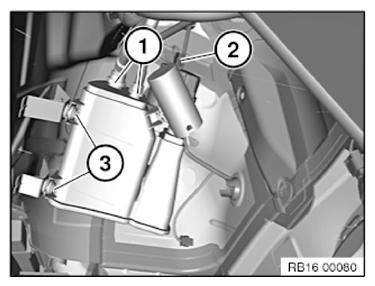

Disconnect plug connection (1).
Unlock snap fasteners (2) and remove tank ventilation lines.
Release screws (3) and swing out carbon canister.
Installation note:
Tightening torque 16 13 1AZ.
The following components must be modified when the carbon canister is replaced:
