16 13 521 Removing and installing/replacing pressure switch for Natural Vacuum Leak Detection (NVLD)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove CARBON CANISTER .
- Remove DUST FILTER .
IMPORTANT:
When replacing the pressure switch, always the dust filter must also be replaced!

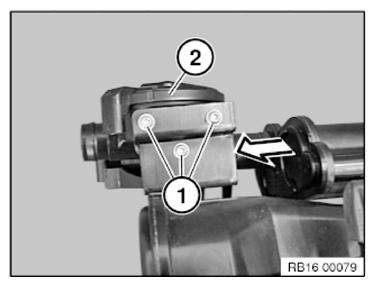

Release screws (1).
Pull off pressure switch (2).
Installation note:
Check gaskets and replace if necessary.
