Removing and installing/replacing left or right rear window frame cover (4' Series Gran Coupe Sedan)
Special tools required:
- 00 9 325
Necessary preliminary tasks:
- Remove COVER FOR REAR WINDOW FRAME at top.
NOTE:
The operation is described on the left side; proceed in the same way for the right side.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

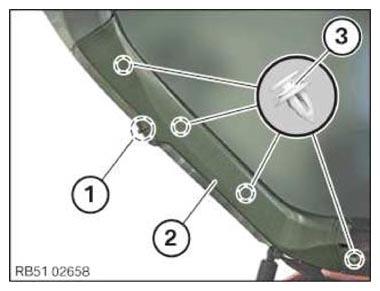

Release screw (1).
Release cover (2) at clips (3) using special tool 00 9 325 and remove.
Installation note:

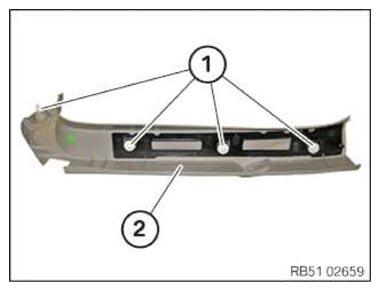

Clips (1) of cover (2) must not be missing or damaged.
If necessary, replace clips (1).
