Removing and installing/replacing cover for rear window frame, top (4' Series Gran Coupe Sedan)
Special tools required:
- 00 9 325
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

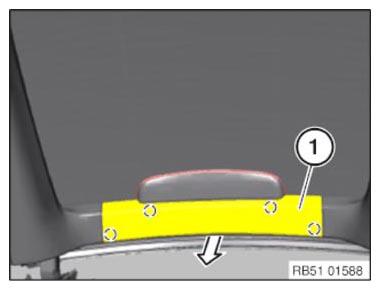

Release cover (1) using special tool 00 9 325 at clips and remove.
Installation note:

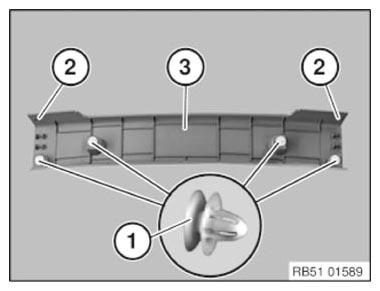

Clips (1) and guides (2) at cover (3) must not be missing or damaged.
If necessary, replace clips (1).
Replacement
Remount clip (1) of cover (3).
