Removing and installing/replacing headlining (version with slide/tilt sunroof) (4' Series Gran Coupe Sedan)

Necessary preliminary work:

Depending on version:

Complete removal only:

Removal:

Remove edge protection (1) inwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Open coat hook (1).

Release the bolt (2) and remove the coat hook (3).

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the screw (1) on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Move the front seat backrests as far back as possible.

IMPORTANT: The following tasks must be carried out with a second person assisting.

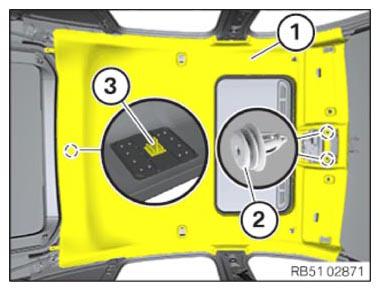

Undo the headlining (1) at the clips (2).

Release the headlining (1) on holder (3).

Set the headlining (1) down and remove through the windscreen opening.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: The following tasks must be carried out with a second person assisting:

Release the headlining on the clips (2) and on holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the edge protection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the coat hook (3) and tighten the screw (2).

Shut the coat hook (1).

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Depending on version:

Only after complete removal:
