Removing and installing/replacing right luggage compartment wheel arch panel (4' Series Gran Coupe Sedan)
Necessary preliminary tasks:
- REMOVE RIGHT LUGGAGE COMPARTMENT TRIM PANEL
- Remove RIGHT D-PILLAR TRIM PANEL .
- Remove COVER FROM TAIL PANEL

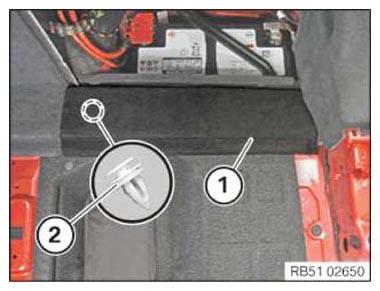

Lift out trim panel (1) at clip (2) and remove upwards

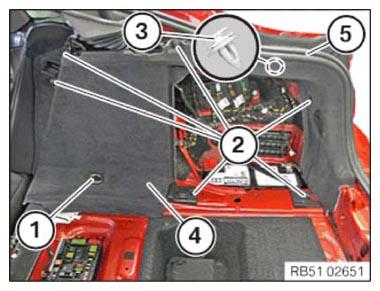

Lever cover out of the lashing eye (1) and release screw underneath.
Tightening torque 51 47 1AZ .
Release expanding rivets (2).
Release clip (3)
Remove trim panel (4).
Installation note:
Make sure trim panel (3) is correctly seated against edge protection (5).
