Removing and installing/replacing top cover on tail panel (4' Series Gran Coupe Sedan)

Special tools required:

• 51 2 040

Necessary preliminary tasks:

• Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

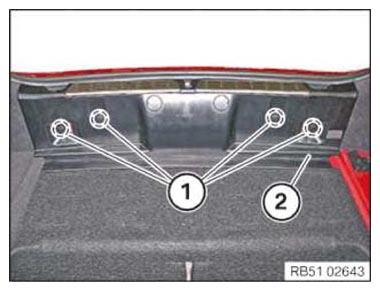

Release expanding rivets (1) from tail panel trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release impact plates (1) with special tool 51 2 040.

Remove trim from tail panel.

Courtesy of BMW OF NORTH AMERICA, INC.
