Removing and installing/replacing left luggage compartment wheel arch trim (4' Series Gran Coupe Sedan)
Necessary preliminary tasks:
- REMOVE STORAGE COMPARTMENT FOR FIRST-AID KIT
- Remove D-PILLAR TRIM PANEL, LEFT .
- Remove COVER FROM TAIL PANEL

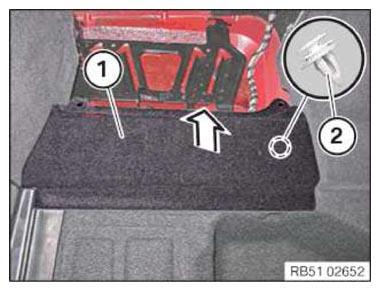

Release side member cover (1) from clip (2) and lift off in direction of arrow.

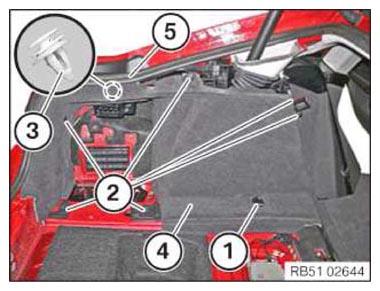

Lever cover out of the lashing eye (1) and release screw underneath.
Tightening torque 51 47 1AZ .
Release expanding rivets (2).
Release clip (3)
Remove trim panel (4).
Installation note:
Make sure trim panel (3) is correctly seated against edge protection (5).
