Removing and installing/replacing tailgate lock (4' Series Gran Coupe Sedan)

Necessary preliminary tasks:

• Remove TOP COVER FROM TAIL PANEL

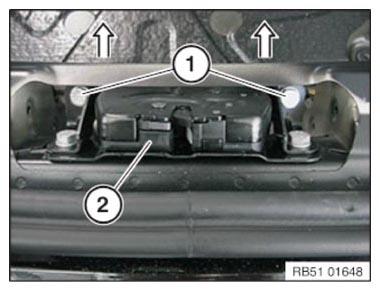

Release screws (1).

Tightening torque 51 24 1AZ .

Feed out rear lid lock (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

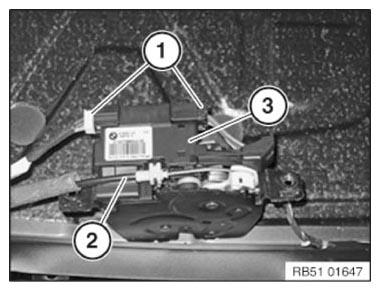

Unlock plug connections (1) and disconnect.

Unhook Bowden cable (2) on tailgate lock (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Perform a function check of tailgate lock with the tailgate open.

Concluding tasks:

• ADJUST REAR LID LOCK
