51 11 770 Removing and installing/replacing left or right deformation element for front bumper panel

Necessary preliminary work:

• Remove SUPPORT  for front bumper panel
• Remove the SUPPORT FOR THE FRONT BOTTOM BUMPER PANEL
• Remove the INTAKE SILENCER HOUSING

F23 and F33 only:

• Remove front-end strut

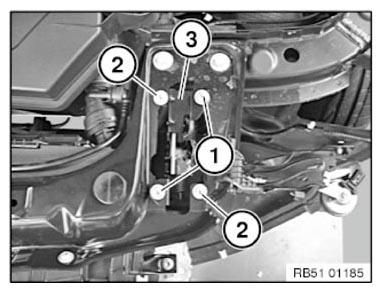

Release screws (1).

Tightening torque, refer to: 51 23 1AZ .

Unfasten screws (2).

Tightening torque, refer to: 51 11 14AZ .

Lay the engine compartment lock (3) on the top.

Courtesy of BMW OF NORTH AMERICA, INC.

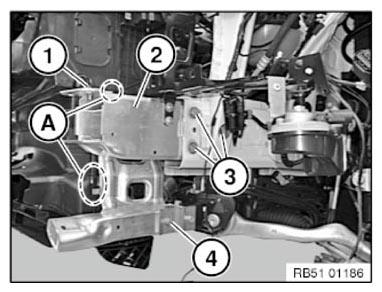

Disconnect plug connection and cable clip from fanfare if necessary.

Release screw (1).

Tightening torque, refer to: 51 11 7AZ .

Loosen screws (3).

Tightening torque, refer to: 51 11 3AZ .

Release screw (4).

Tightening torque, refer to: 51 11 6AZ .

Detach deformation element (2) from air duct in area (A) and feed out.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

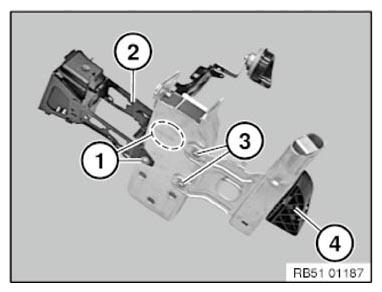

Release screws (1) on both sides and remove bracket (2).

Tightening torque, refer to: 51 11 2AZ .

Release screws (3) and remove lower deformation element.

Tightening torque, refer to: 51 11 5AZ .

When replacing lower deformation element:

Release blind rivet from damper (4).

Courtesy of BMW OF NORTH AMERICA, INC.
