51 11 060 Removing and installing/replacing support for front lower bumper panel

Necessary preliminary tasks:

F20/F21 only:

Version with air duct:

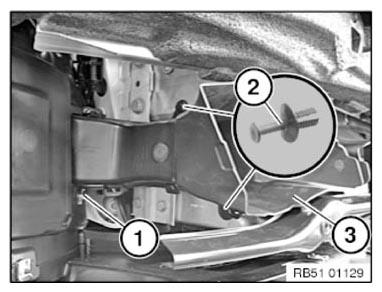

Unscrew bolts (1) and expanding rivet (2).

Remove air duct (3).

NOTE: Schematic diagram shows the right side. Perform repair work on the left side in the same manner.

Courtesy of BMW OF NORTH AMERICA, INC.

Version with ACC:

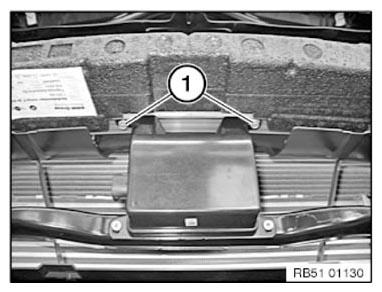

Release screws/blind rivet (1).

Installation note:

Blind rivet nuts* and associated screws* are used as repair solution for defective threads or installed blind rivet.

* Sourcing reference: BMW Parts Department.

Adhere to the notes on mounting blind rivet nuts; refer to SETTING BLIND RIVET NUTS AND BOLTS .

Courtesy of BMW OF NORTH AMERICA, INC.

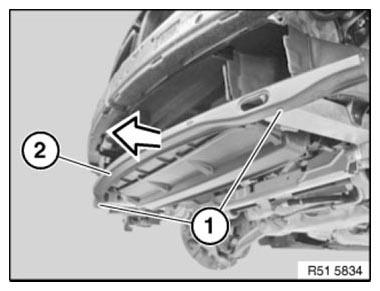

Release screws (1).

Tightening torque, refer to: 51 11 10AZ .

Remove support (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of replacement ACC version:

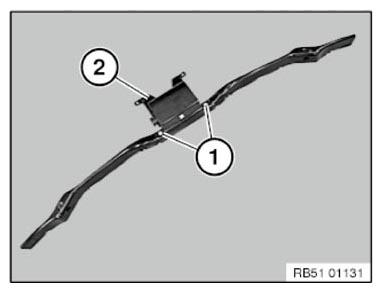

Drill out blind rivets (1).

Modify holder (2) with ACC sensor.

Adjust the ACC SENSOR .
