33 32 190 Removing and installing/replacing left or right camber arm

NOTE: If the camber arm is detached from the rear axle support/wheel carrier, it is necessary after installation to carry out a WHEEL ALIGNMENT .

Necessary preliminary work:

Only on left side at ride-height sensor:

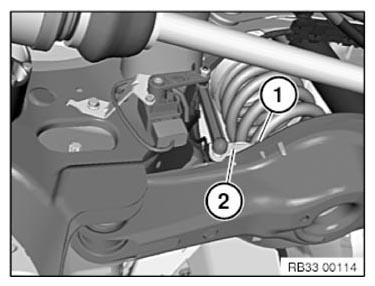

Release screw (1) and remove holder (2) with jointed rod.

Tightening torque 37 14 3AZ.

Installation note:

Replace screw.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure camber arm against falling off.

Mark position of eccentric adjustment washer to rear axle support to simplify subsequent adjustment of rear axle.

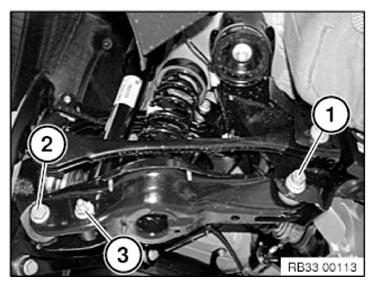

Release nut (1) and remove eccentric bolt.

Tightening torque 33 32 9AZ.

Installation note:

Note insertion direction of eccentric screw.

Replace nut.

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2) and remove screw.

Tightening torque 33 32 10AZ.

Installation note:

Note direction of insertion of screw.

Replace nut.

Release nut (3) and remove screw.

Tightening torque 33 52 3AZ .

Installation note:

Note direction of insertion of bolts.

Replace screw and nut.

Tighten down screw connection in normal position.

After installation:
