25 11 250 Removing and installing/replacing vibration absorber

Necessary preliminary tasks:

• Remove the SHIFT LEVER COVER .

Removal:

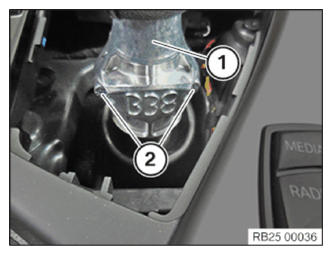

Loosen screws (2).

Remove vibration absorber (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the vibration absorber (1).

Tighten down screws (2).

Tightening torque, refer to: 25 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the SHIFT LEVER COVER .
