25 11 01 Detaching the gearshift lever cover

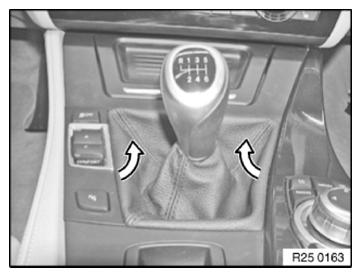

Pull installation frame of gaiter at the sides upwards out of center console.

G12822173

Courtesy of BMW OF NORTH AMERICA, INC.
