REP-TAT-P-5143-02 Installing side trim panel in footwell on right A-pillar
- Check clips (1) on side trim panel (2) for damage and replace if necessary.
NOTE:
TECHNICAL INFORMATION
Notes on seal are a fundamental requirement for these repair instructions and must be complied with at all times.
For more information, see: SEAL INSTALLATION
Notes on seal are a fundamental requirement for these repair instructions and must be complied with at all times.
For more information, see: SEAL INSTALLATION

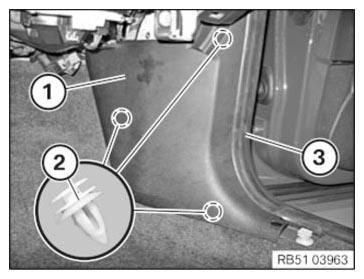

- Secure side trim panel (1) with the clips (2).
- Mount edge protection (3) in area of the side trim panel (1).
Follow-up work
- Install the BOTTOM RIGHT INSTRUMENT PANEL TRIM
- Install the FRONT DOOR SILL COVER STRIP
