REP-TAT-P-5147-02-01 Install the front door sill cover strip

NOTE: Description is for left component only. Procedure on the right side is identical.

• Replace faulty clips (1) on the front door sill cover strip (2).

  Parts:  Clips

  Courtesy of BMW OF NORTH AMERICA, INC.

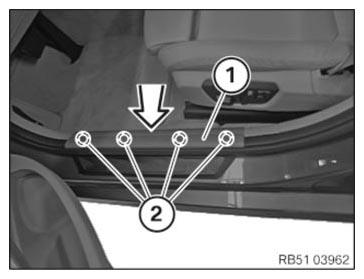

• Install and engage the front door sill cover strip (1) with the clips (2) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
