22 11 100 Replacing right engine support arm

Necessary preliminary tasks:

• Secure the ENGINE IN INSTALLATION POSITION .
• Remove the UNDERBODY PROTECTION .

Removal:

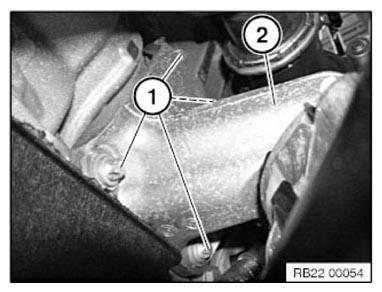

Release screws (1).

Remove engine support arm (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install engine support arm (2).

Tighten down screws (1).

Tightening torque, refer to: 22 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install front and rear UNDERBODY PROTECTION .

Install and adjust the RIGHT ENGINE MOUNT
