22 11 001 Replacing right engine mount

Necessary preliminary tasks:

• Remove the right ENGINE SUPPORT ARM .

Removal:

Unscrew screws (1).

Remove engine mount.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

INSTALLATION NOTE:

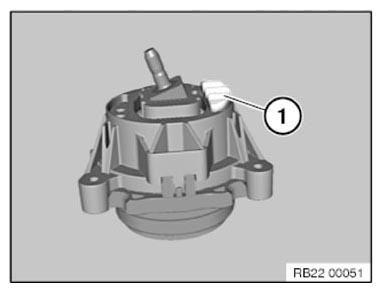

Rubber part (1) of engine mount must point to center of vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

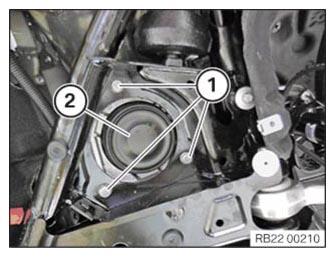

Install engine mount (2).

Tighten down screws (1).

Tightening torque, refer to: 22 11 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the ENGINE SUPPORT ARM  on right.
