Install the knock sensor for cylinders 1 to 2
NOTE:
TECHNICAL INFORMATION
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.

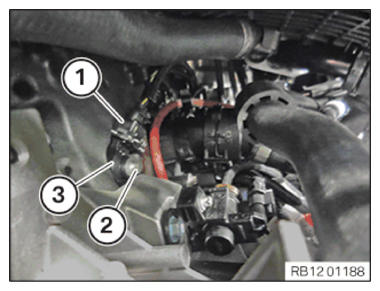

- Clean the contact surface of the knock sensor at the crankcase.
- Install knock sensor (3).
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Knock sensor to crankcase | ||
|---|---|---|
| M8x30 Observe tightening torque without fail! |
tightening torque | 21.5 Nm |

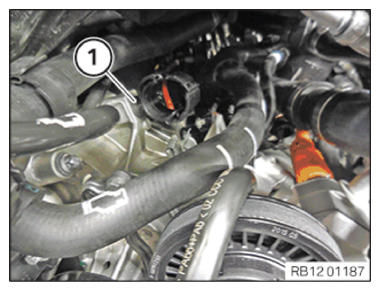

- Connect and lock the connector (1).
The connector (1) must engage audibly.

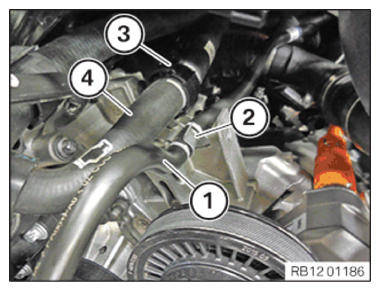

- Insert and install the holder (1).
The holder (1) must engage audibly.
- Feed in and install coolant line (4).
- Lock holder (3).
The holder (3) must engage audibly.
- Secure coolant line (1) on holder (2).

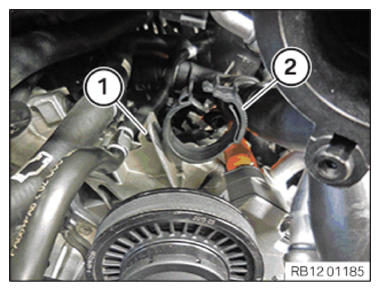

- Insert and install the holder (2).
The lock (1) must audibly engage.

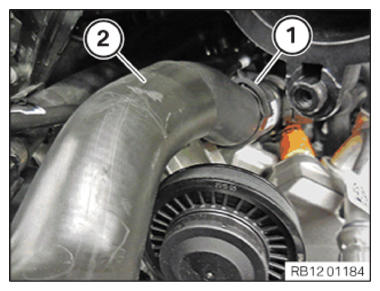

- Feed in and install coolant line (2).
- Lock holder (1).
The holder (1) must engage audibly.
Follow-up work
- Refer to INSTALLING BOTH COOLANT EXPANSION TANKS .
- Refer to INSTALLING THE DESIGN COVER .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING NEGATIVE BATTERY CABLE (ENGINE COMPARTMENT) .
- Refer to CONNECTING THE NEGATIVE BATTERY CABLE .
- Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
- Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
