Installing both coolant expansion tanks

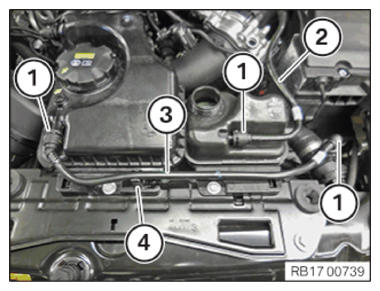

• Connect and lock the connector (1)  to the coolant level switch.

  The connector (1)  must engage audibly.

• Connect and lock coolant line (2).

  The coolant line (2)  must audibly engage.

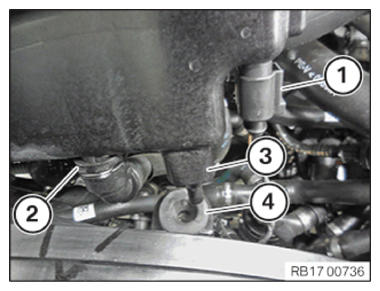

• Insert the coolant expansion tank for the high-temperature coolant circuit (3)  into the rubber mount (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

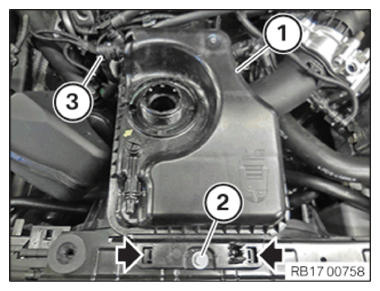

• Insert and install the coolant expansion tank for the high-temperature coolant circuit (1).

  The locks (arrows) must engage audibly.

• Tighten down screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock coolant line (3).

  The coolant line (3)  must audibly engage.

• Top up the coolant to the maximum mark.

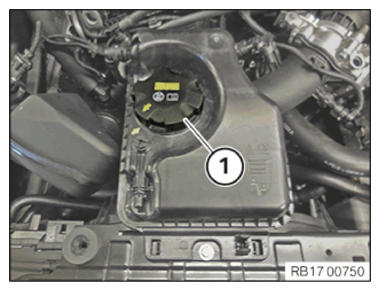

• Close the sealing cap (1)  until the arrows are flush.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the coolant expansion tank for the low-temperature coolant circuit

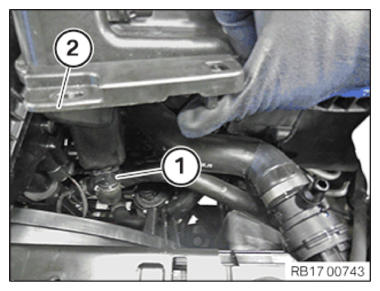

• Insert the coolant expansion tank for the low-temperature coolant circuit (2).
• Connect and lock coolant line (1).

  The coolant line (1)  must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

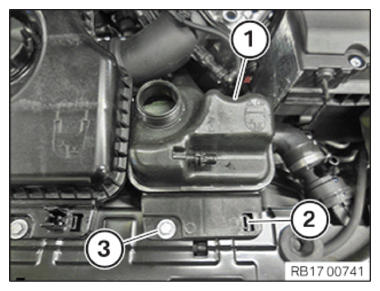

• Insert and install the coolant expansion tank for the low-temperature coolant circuit (1).

  The lock (2)  must audibly engage.

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock coolant line (2).
• Feed in and install coolant line (3).

  The locks (1)  must engage audibly.

• Secure the coolant line (3)  to the holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.

• Top up the coolant to the maximum mark.

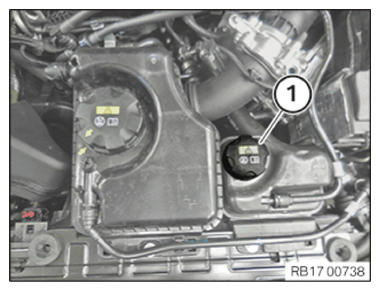

• Shut sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DESIGN COVER .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
