12 61 280 Removing and installing/replacing oil pressure switch (N47 D16/20 K/U/O/T 1)

IMPORTANT: When working on the oil, coolant or fuel circuit, you must protect the alternator against contamination.
Cover alternator with suitable materials.
Failure to comply with this procedure may result in an alternator malfunction.

Necessary preliminary tasks:

Remove ACOUSTIC COVER
Remove ELECTRONICS BOX .

NOTE: The oil pressure switch is located beneath the high pressure pump.

IMPORTANT: A small amount of engine oil emerges when oil pressure switch is removed.
Have a cleaning cloth ready.

Release connector and remove.

Release oil pressure switch.

Installation note:

Replace sealing ring.

Tightening torque: 12 61 1AZ .

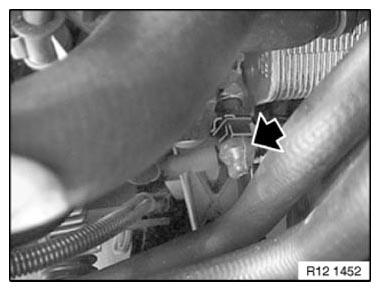

Fig 1: Locating Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

Check engine oil level.
