84 31 541 Removing and installing/replacing hands-free microphone on steering column

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove UPPER STEERING COLUMN TRIM

Unlock hands-free microphone (1) and holder (2) and remove in direction of arrow.

Feed cable (3) out of upper steering column trim (4).

Remove hands-free microphone (1).

Installation:

Make sure cable (3) is laid without kinks.

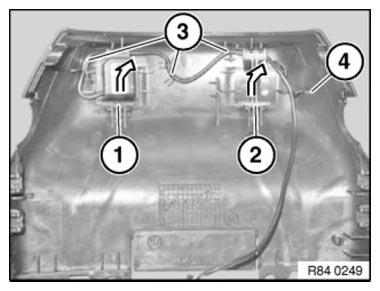

Fig 1: Removing Hands-Free Microphone And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnecting the plug connection for the hands-free microphone or emergency SOS call button results in fault memory entries in the telephone control unit (limitation in the emergency SOS call system).

After fitting, read out fault memory and if necessary delete entries.
