32 31 003 Removing and installing/replacing upper section of steering column trim

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Move steering column into "lower" and "extended" position.

Lever out upper section of steering column trim (1) with special tool 51 1 110 in direction of arrow towards top.

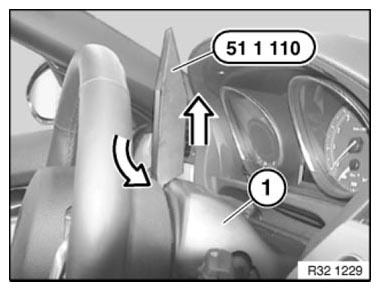

Fig 1: Removing Upper Section Of Steering Column Trim Using Special Tool (51 1 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt steering column trim (1) towards front.

Unclip steering column gap cover (2) from steering column trim.

Installation:

Tilt steering column trim towards rear, align by way of lock to lower section (of steering column trim) and press down.

Fig 2: Identifying Steering Column Trim And Gap Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt steering column trim forwards.

Unclip gap cover from steering column trim.

Fig 3: Locating Steering Column Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.
