65 81 060 Removing and installing/replacing outside temperature sensor

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT UNDERBODY PROTECTION

NOTE: Outside temperature sensor is situated in area (1) on left wheel arch cover (2).

Fig 1: Identifying Outside Temperature Sensor Position And Left Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows wheel arch cover removed.

Unfasten plug connection (1) and disconnect.

Unclip outside temperature sensor (2) in direction of arrow from wheel arch cover.

Installation:

Make sure outside temperature sensor (2) is correctly engaged in wheel arch cover.

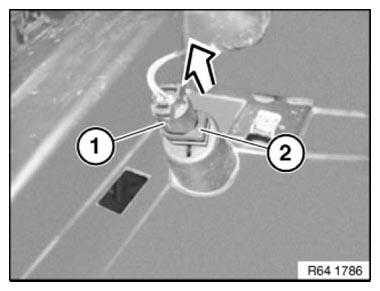

Fig 2: Removing Outside Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
