63 99 315 Replacing light bulb(s) for left or right rear light

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks

Remove SOCKET HOUSING FOR REAR LIGHT

Brake light:

Pull faulty bulb (1) in direction of arrow out of socket housing (2).

Installation:

Note BULB TYPE .

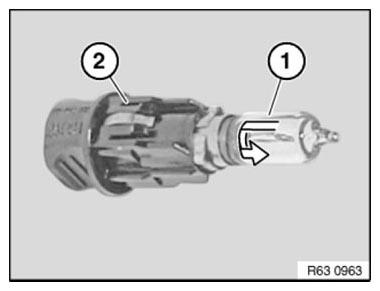

Fig 1: Removing Bulb From Socket Housing (Brake Light)

Courtesy of BMW OF NORTH AMERICA, INC.

Reversing light:

Pull faulty bulb (1) in direction of arrow out of socket housing (2).

Installation:

Note TYPE OF BULB .

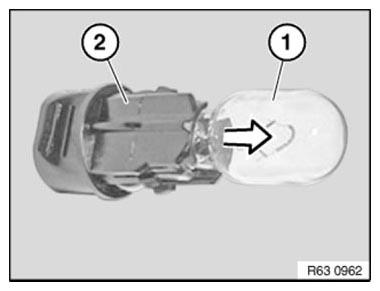

Fig 2: Removing Bulb From Socket Housing (Reversing Light)

Courtesy of BMW OF NORTH AMERICA, INC.

Brake light/rear fog light:

Turn faulty bulb (1) in direction of arrow and pull out of socket housing (2).

Installation:

Note TYPE OF BULB .

Fig 3: Removing Bulb From Socket Housing (Brake Light/Rear Fog Light)

Courtesy of BMW OF NORTH AMERICA, INC.
