63 21 055 Replacing a socket housing for left or right rear light

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

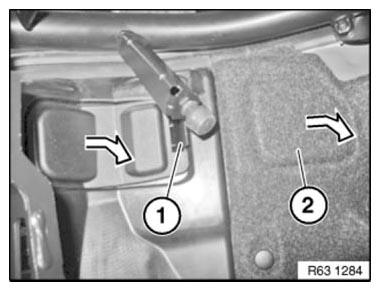

Release side cover trim (1) and remove in direction of arrow.

Remove side cover trim (2) in direction of arrow.

Fig 1: Removing Side Cover Trim

Courtesy of BMW OF NORTH AMERICA, INC.

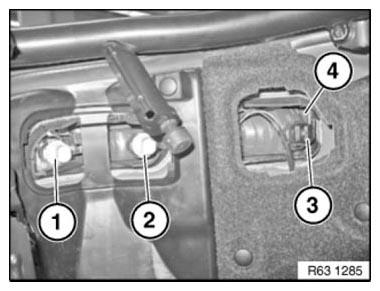

Withdraw socket housings (1-3) from rear light (4).

NOTE:

Socket housing for brake light
Socket housing for reversing light
Socket housing for brake light/rear fog light

Fig 2: Identifying Rear Light Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Convert BULBS , replace if necessary
