41 62 519 Removing And Installing/Replacing Left Or Right Hinge For Rear Lid
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .

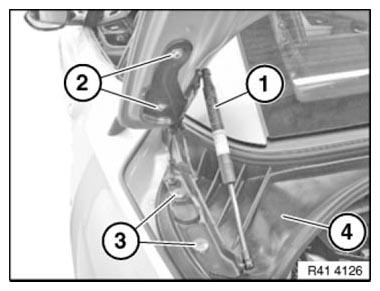

Remove GAS PRESSURE SPRING (1).
Unfasten screws (2).
Tightening torque 41 62 1AZ .
IMPORTANT:
Secure rear lid against falling down, remove if necessary.
Release screws (3).
Tightening torque 41 62 3AZ .
Remove hinge.
Installation:
Replace sealing compound between hinge and rear module (4).
Adjust rear lid on the basis of the BODY GAP DIMENSIONS .
