41 00 505 Checking Front Body Structure

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT UNDERBODY PROTECTION

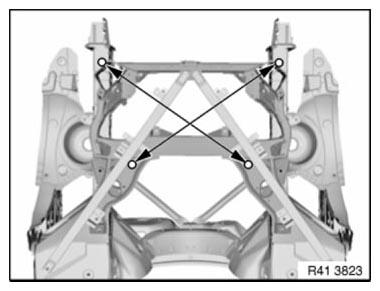

Structural damage can be identified by measuring with a beam trammel.

Here, symmetrically arranged points on the vehicle are measured in diagonal sequence.

If the two measured values are identical, there is no damage to the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

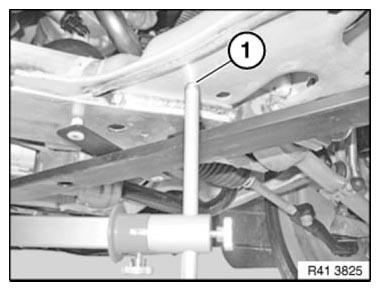

In front area use conical adapter (2) at bore hole (1).

Courtesy of BMW OF NORTH AMERICA, INC.

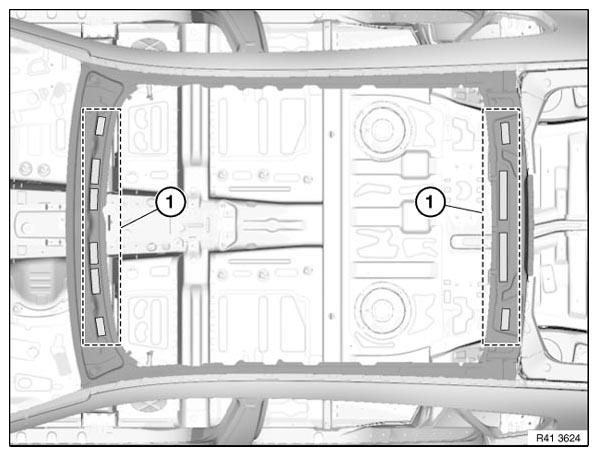

Use 8 mm dia. bore hole (1) on front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
