41 61 571 Removing And Installing/Replacing Left Hinge For Engine Compartment Lid, (For Vehicles With Active Pedestrian Protection AFGS)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of injury. Adhere to SAFETY PRECAUTIONS AND GENERAL INFORMATION so as to avoid a danger of injury by the actuator. The battery earth lead must be clamped off prior to work on the hinge or engine compartment lid!

Necessary preliminary tasks:

Disconnect battery earth lead.
Remove engine compartment lid .

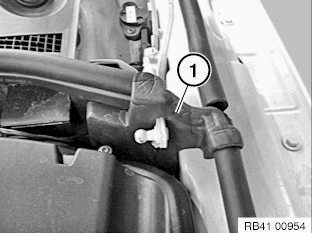

Remove gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

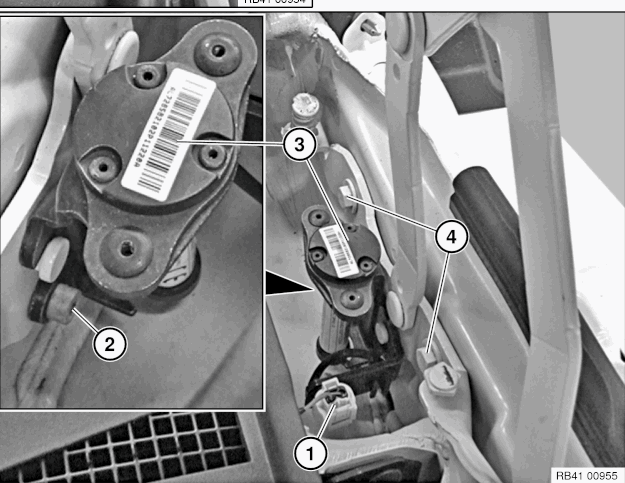

Unfasten plug connection (1) and disconnect. Release bolt (2) and remove actuator (3). Tightening torque 41 61 4AZ . Release screws (4) and remove hinge. Tightening torque 41 61 2AZ . Mark severance cuts in accordance with specified dimensions and cut.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Adjust hinge together with engine compartment lid.
