41 12 653 Replacing Left Luggage Compartment Floor Section (Tail Panel And Side Panel Removed)

Read contents of BODY, GENERAL  .

Strip down vehicle.

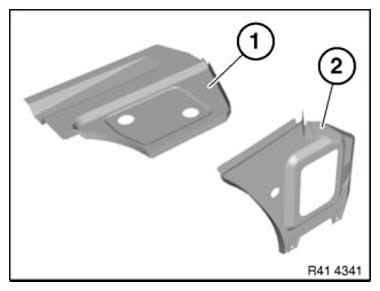

Following new body parts are required:

• (1) Luggage compartment floor, left section
• (2) End plate, rear ventilation, left

Courtesy of BMW OF NORTH AMERICA, INC.

Following CONSUMABLES  are required:

CONSUMABLES REFERENCE CHART

Removal of luggage compartment floor

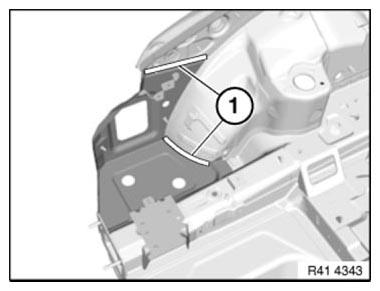

Open weld joints in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

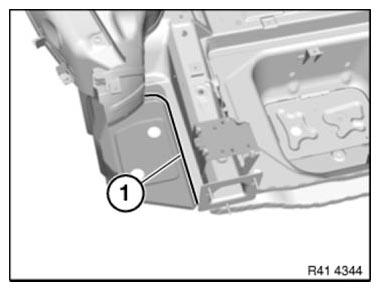

Mark severance cut (1) in radius and cut.

Remove luggage compartment floor and rear ventilation end plate.

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Mark new luggage compartment floor part in accordance with severance cut on vehicle + 20 mm extra material and cut.

Adjust new parts in combination with tail panel to fit and secure.

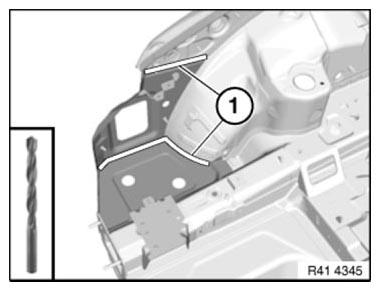

Set nine 4.2 mm dia. holes for blind rivets in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

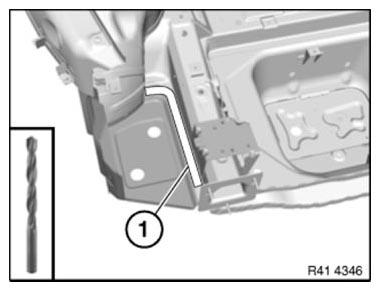

Set six 4.2 mm dia. holes for blind rivets in area (1).

Remove new parts again and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of luggage compartment floor

Clean all bonding surfaces (1) on new parts and on vehicle with cleaning agent R1!

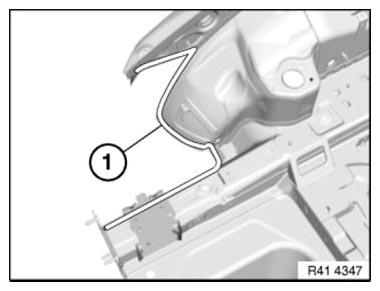

Apply adhesive K5a to all bonding and rivet surfaces (1).

Courtesy of BMW OF NORTH AMERICA, INC.

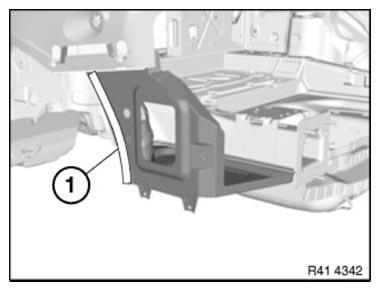

Install new parts and rivet in area (1) with blind rivets N6.

Courtesy of BMW OF NORTH AMERICA, INC.

Use blind rivets N3 in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

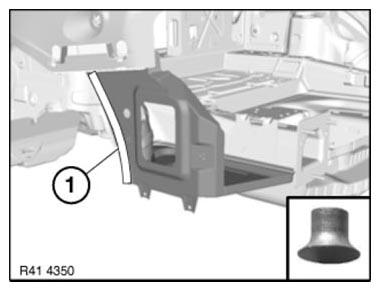

Use 4 punch rivets N4 in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
