41 21 518 Replacing Left B-Pillar (Rear Left Side Panel Removed)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Following new body parts are required:
- (1) B-pillar, outer left

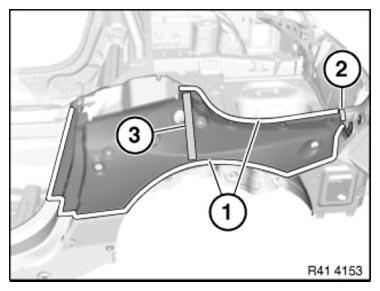

Open weld joints in areas (1).
Open brazed joint in area (2).
Installation:
Apply sealant to CAVITY ACOUSTIC BAFFLE (3).
