41 14 502 Replacing Rear Left Outer Wheel Arch Section (Rear Left Side Panel Removed)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

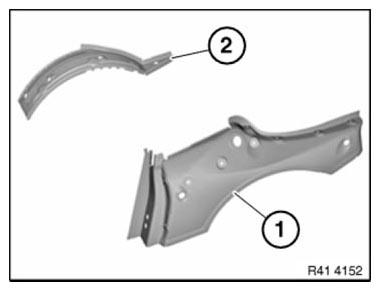

Following new body parts are required:
- (1) B-pillar, outer left
- (2) Side section, inner left
- (3) Cavity acoustic baffle, window cavity (not pictured)

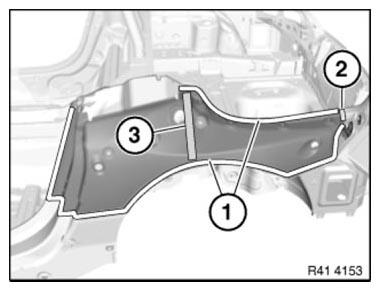

Open weld joints in areas (1).
Open brazed joint in area (2).
Installation:
Apply sealant to CAVITY ACOUSTIC BAFFLE (3).

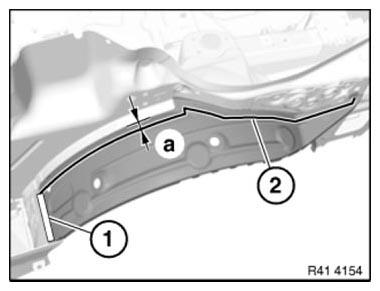

Mark severance cut (1) in accordance with measurement and cut.
Measurement a = 20 mm from inner wheel arch section.
Open weld joints in area (1).
Installation:
Weld new part overlapping.
