41 21 512 Replacing Inner Door Pillar Section (Door Pillar Removed)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Spot-weld bonding is used on the E85. Observe specific procedure See 4100... SPOT-WELD BONDING STEEL PARTS or 4100... OPENING ADHESIVE BONDS .

Place vehicle on straightening bench.

NOTE: Observe new procedure for bonding and riveting (REPAIR STAGE 2) .

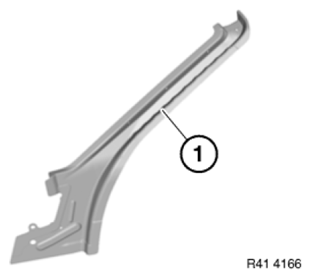

(1) Support, A-pillar

Following CONSUMABLES are required:

CONSUMABLES REFERENCE CHART

Material	Quantity
Adhesive K5a	1
Blind rivets N1	4
CleanerR1	1
Sealing compound D1

Courtesy of BMW OF NORTH AMERICA, INC.

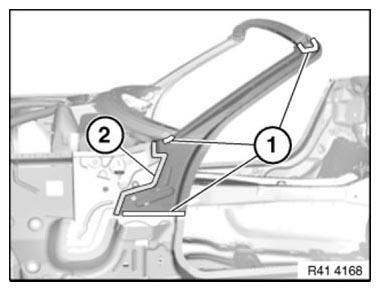

View from inside.

Open weld joints in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

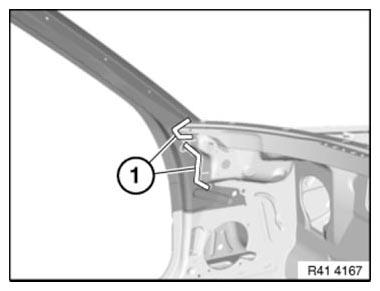

Open weld joints in areas (1).

Open spot-weld bonded joints in area (2)

Installation:

Adjust new part to fit with straightening attachment or universal mount.

Apply adhesive K5a in area (2). Rivet new part with 4 blind rivets N1. Before applying adhesive, clean bonding surfaces with adhesive cleaner.

Observe fitting of door pillar when selecting the rivet positions.

When welding the new part, make sure that the adhesive joints of adjoining components are not damaged by the application of heat.
